POWER & SPEED + LOW FUEL CONSUMPTION & CLEAN PERFORMANCE
Well-established excellent operability and easy maintenance for daily inspections
Advanced safety and a wide range of options
Responding to on-site demands,
POWER & SPEED + Fuel-efficient & Clean Performance
Top-class loading speed and running performance. Equipped with a new engine and reliable and proven SUMITOMO axles, it achieves both low fuel consumption and clean performance.

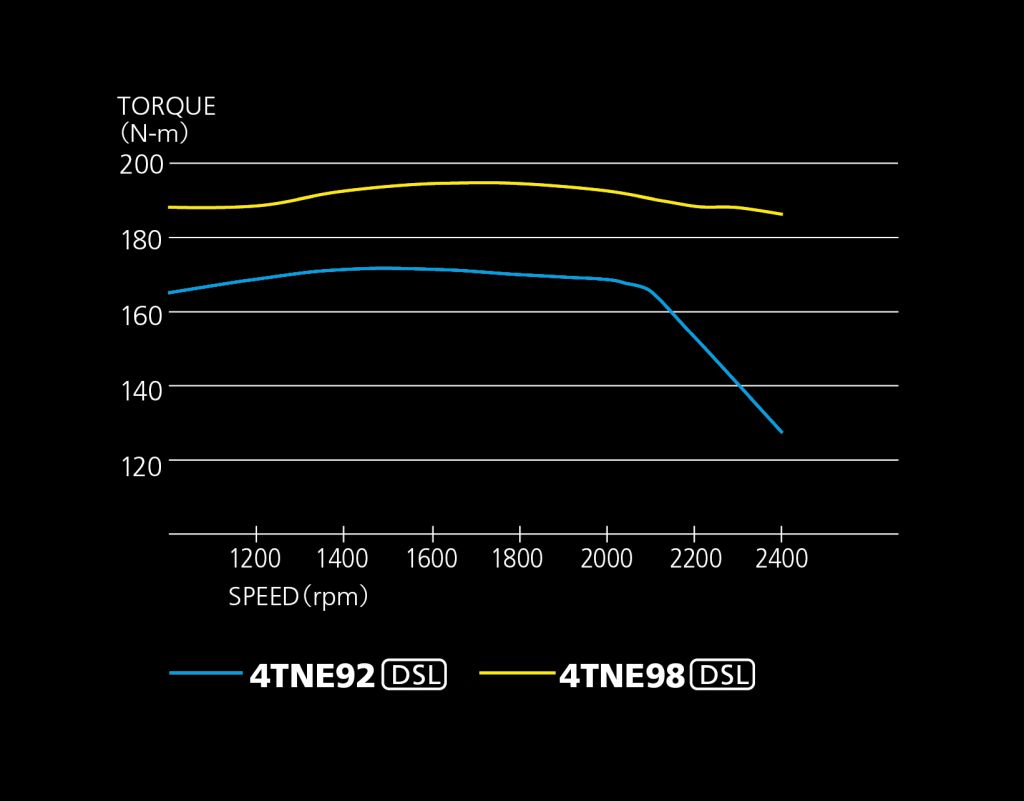

A new diesel engine equipped with an electronically controlled common rail fuel injection system, intercooler turbo, cooled EGR, and DOC in the aftertreatment device.
Precise control achieves ideal combustion. Generation of NOx, CO, and HC is suppressed while PM (particulate matter) generation is greatly reduced.
The new engine and LSS (described below) have achieved significant improvements in fuel efficiency compared to previous models.
(Complies with the 2014 domestic emission regulations for non-road vehicles)
By adopting ECS (electronically controlled throttle) and LSS (later described), high power, good response, and low fuel consumption are achieved at the same time. Furthermore, when ECO mode is ON, fuel consumption is improved by 15% compared to OFF, and together with the three-way catalytic muffler, it achieves environmentally friendly cleanliness.
(Complies with the 2007 domestic emission regulations for non-road vehicles)
The LSS (Load Sensing Steering System) dynamically adjusts the flow rate of power steering oil according to steering operation. Conventionally, oil flows to the power steering all the time, but by cutting it off except when necessary, it contributes to improved fuel economy.
Sharp turning performance and knob slippage control
The 1.5 ton vehicle boasts a minimum turning radius of 1,960 mm, making it one of the best in its class.
In addition, a knob misalignment correction function is standard equipment, which corrects discrepancies between the rear wheel turning angle and the steering position.
Left: Drive axle
The axle assembly, including the final gear and differential, is fixed to the frame with bolts. This sturdy mounting structure maintains high strength.
Right: Rear axle
The highly durable rubber mounts support the suspension softly and firmly. Rubber is also used to suppress vibration, gently suppressing the vibration of the vehicle body when turning, improving stability when turning.
Proven excellent operability
The cockpit, which the operator comes into direct contact with, is specially designed with every component in mind, and its sensitive hydraulic controls ensure that it responds linearly to the operator's commands.
Detailed Information
Parking Lever
Parking lever with release button.
The short stroke lever allows for easy braking. The pulling force can be adjusted by turning the knob.
shift lever
The left side is equipped with a shift lever, and the right side is equipped with a turn signal lever with a light switch (with auto canceller) as standard equipment. You can smoothly switch between forward and reverse. (It can also be changed to a right-hand shift lever.
Full LCD display
Small diameter steering wheel
By offsetting the steering wheel to the left of the driver's seat and making it smaller in diameter, the range in which the hands need to turn is reduced, achieving lighter operability and reduced fatigue, based on ergonomics.
*Handle diameter: 300mm
Selectable inching pedal (1 & 2)
2 pedal inching1 pedal inching
The inching pedal that increases the loading and unloading speed can be selected from the standard two-pedal system and the one-pedal system with a large pedal step that makes driving feel like driving a passenger car. The suspended system keeps the floor clean.
Easy maintenance for daily inspections
Open the under-seat hood for quick access to the engine, making daily inspections easy.
Detailed Information
Wide-view mast that allows you to see the tip of the fork
A popular wide-visibility mast. It provides a wide effective visibility of 2.5mm for a 420t vehicle, and the toe (※) can be clearly seen from lift-down to lift-up. (※For standard 1,070mm)
Acrylic cover
An acrylic cover that protects the operator from rain and small falling objects while maintaining good upward visibility. (Free option)
Easy maintenance
The fully-opening integrated hood allows for excellent engine room maintenance, and full access is possible by removing the rear panel.
The suspension seat is known for its comfort. Its large sliding and reclining range allows you to choose the optimal seat position. In addition, the suspension mechanism, which is essential for forklifts equipped with puncture-proof tires, has an adjustment function that can be adjusted to suit the operator's weight (see photo on the right).
The driving interlock automatically cuts off the driving power when the operator leaves the seat. This prevents accidents caused by misoperation, such as stepping on the accelerator when not driving. (* This does not apply the brakes. Please apply the parking brake when stopping.)
The cargo handling interlock disables the cargo handling lever when the operator is not in the correct operating position, preventing accidents caused by incorrect operation.
LED lights consume less power, have a long life span, and do not require bulb replacement. Compared to conventional standard lights, they have superior vertical illumination and provide light over a wide area, making high-stacking work easier. Since they do not require maintenance, there is no lost time during work, and they contribute greatly to total lifetime costs.
Long-life LED light cluster:No need to worry about bulbs burning out even on work sites with lots of rough roads (Average LED life: approx. 40,000 hours)
Headlight (round/with guard)Headlight (square)
Rear combination lightRotating light
